5 Types of HVAC Systems Every Construction Professional Should Know

Ankit Javeri
Author : Ankit Javeri
9 Minutes Read
  • Home
  • Blog
  • 5 Types of HVAC Systems Every Construction Professional Should Know

    When it comes to maintaining comfortable indoor environments, HVAC systems play a pivotal role. Whether you're a homeowner looking to improve your living space, a property manager overseeing multiple buildings, or an HVAC professional seeking the best solutions for your clients, understanding the different types of HVAC systems and their applications can make all the difference. In this blog, we'll explore the five most common types of HVAC systems, their unique benefits, and how they cater to various needs.

    What is an HVAC System?

    Heating, Ventilation, and Air Conditioning (HVAC) systems are essential technologies used to regulate temperature, humidity, and air quality within buildings. They ensure comfort and maintain healthy indoor air conditions through key functions such as heating, ventilation, and air conditioning.

    ● Heating

    Heating is a fundamental aspect of HVAC systems, responsible for providing warmth to a building. Systems like furnaces, boilers, and heat pumps are commonly used to ensure a cozy environment during colder months. These systems work by generating heat and distributing it throughout the building, creating a comfortable atmosphere even when temperatures drop.

    ● Ventilation

    Correct ventilation is crucial for ensuring fresh air circulation within a building. By exchanging indoor air with outdoor air, ventilation systems help improve air quality by removing pollutants, odors, and excess moisture. This process not only enhances the overall comfort of a space but also contributes to a healthier indoor environment for occupants.

    ● Air Conditioning

    Air conditioning is a key function of HVAC systems, especially during warmer months. These systems cool and dehumidify indoor air, maintaining a comfortable temperature that allows occupants to escape the heat. By effectively controlling humidity and temperature, air conditioning systems contribute to a pleasant and conducive indoor environment.

    As per SBE,The HVAC industry is expected to continue to grow at a CAGR of 6.1% from 2021 to 2026.

    How Does a Commercial HVAC System Work?

    Commercial HVAC systems are designed to handle the unique demands of larger buildings and spaces, providing efficient climate control and comfort. Let's take a closer look at how these systems work to create optimal conditions for various environments.

    ● Air Intake and Filtration

    The first step in a commercial HVAC system involves bringing in fresh air from the outside. This air is then passed through filters to remove dust, allergens, and pollutants, ensuring that only clean and high-quality air enters the building. This process is crucial for maintaining a healthy indoor environment, especially in commercial settings where air quality is paramount.

    ● Heating or Cooling

    Depending on the specific needs of a building, commercial HVAC systems can heat or cool the incoming air. Heating is achieved using systems like furnaces, boilers, or heat pumps, while cooling is accomplished through chillers or air conditioning units. This flexibility allows commercial spaces to maintain a comfortable temperature year-round, regardless of external weather conditions.

    ● Air Distribution

    Once the air is conditioned, it is circulated throughout the building via ductwork and vents. This distribution system ensures that every corner of the building receives the desired indoor temperature, creating a consistent and comfortable environment for occupants. Proper air distribution is essential for achieving uniform climate control in larger commercial spaces.

    ● Thermostat Control

    Thermostats play a crucial role in commercial HVAC systems by monitoring and regulating the temperature. These devices ensure that the system operates efficiently based on the building's requirements, preventing energy wastage and ensuring optimal comfort. Modern thermostats offer advanced features such as programmable settings and remote control, allowing for precise temperature management.

    ● Exhaust and Ventilation

    Stale air is continuously removed from the building and replaced with fresh air, thanks to the exhaust and ventilation components of commercial HVAC systems. This process ensures proper ventilation and air quality, preventing the buildup of contaminants and maintaining a healthy indoor environment for occupants.

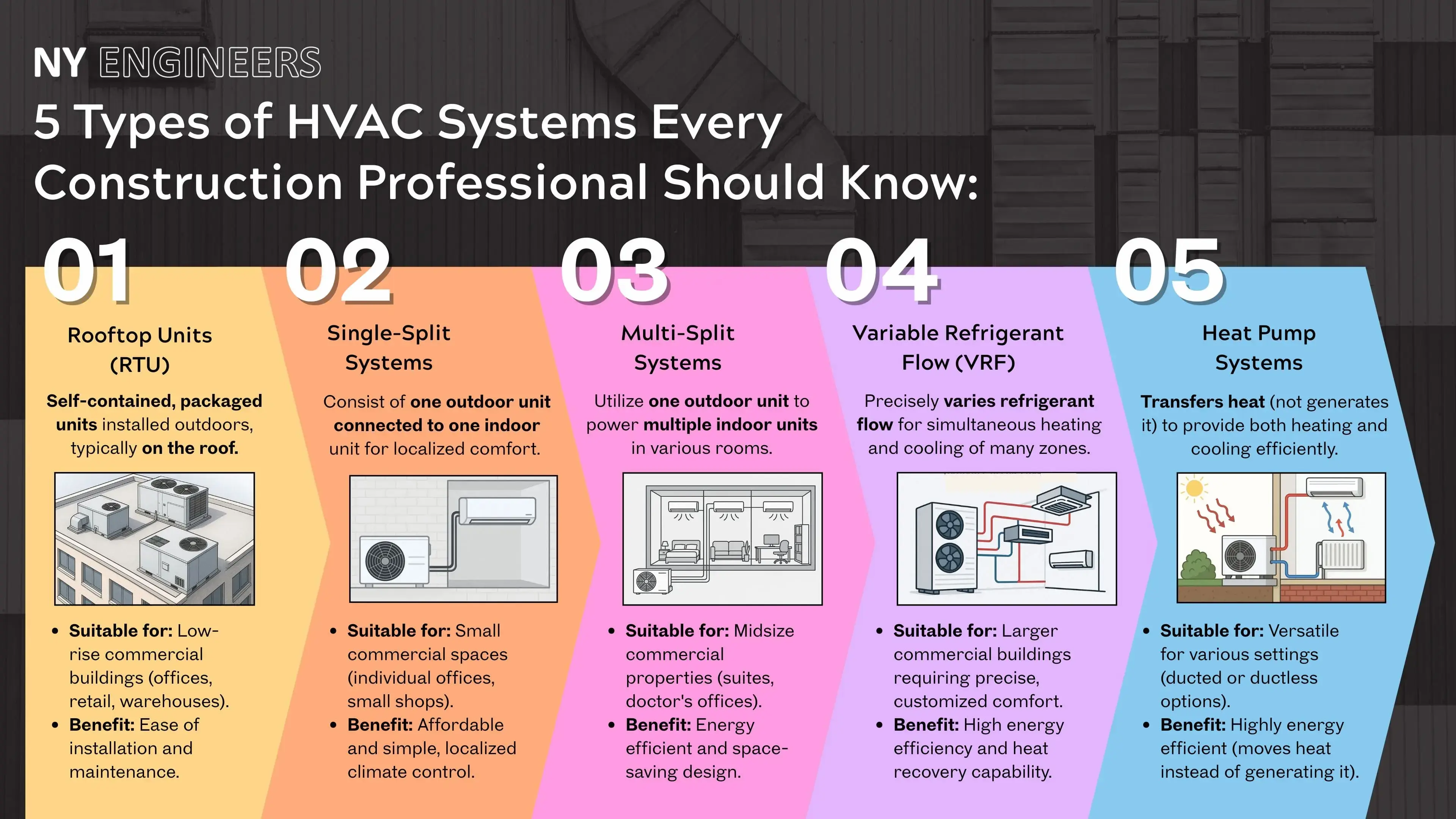

    5 Most Common Types of HVAC Systems for Commercial Buildings

    Now that we have a solid understanding of how HVAC systems work, let's explore the five most common types used in commercial buildings. Each type offers unique features and benefits, catering to different needs and preferences.

    1. Rooftop Units (RTU)

    Rooftop Units (RTUs) are self-contained packaged systems designed for single floors or specific zones within a building. These units integrate all necessary components for heating, cooling, and air distribution, making them a convenient solution for smaller commercial spaces.

    Key Features of RTUs

    • Self-Contained Design: RTUs are compact and self-contained, meaning they include all essential components such as evaporators, compressors, and condensers within a single unit. This design simplifies installation and maintenance, making them a popular choice for low-rise commercial buildings.
    • Cooling Capacity: RTUs typically have a cooling capacity below 120 tons, using standard refrigerants to produce and reject cold air or water. This capacity is suitable for providing comfort in smaller commercial spaces such as office towers, retail stores, and warehouses.
    • Ease of Installation: The self-contained nature of RTUs allows for straightforward installation and flexible zone-by-zone climate control. This makes them an ideal choice for businesses seeking efficient and cost-effective HVAC solutions.

    Applications of RTUs

    RTUs are widely used in low-rise commercial buildings such as office towers, retail stores, and warehouses. Their compact design and ease of installation make them suitable for projects where space and simplicity are key considerations.

    2. Single-Split Systems

    Single-split systems are a popular choice for small commercial spaces, offering efficient heating and cooling solutions with a simple setup. These systems typically consist of an air conditioner, a furnace, an evaporator coil, and refrigerant lines.

    Key Features of Single-Split Systems

    • Versatile Setup: Single-split systems are designed for small commercial spaces such as individual offices, shops, and restaurants. They are an affordable alternative to central systems, providing localized climate control without the need for complex installations.
    • Affordable Solution: Compared to central systems, single-split systems are more budget-friendly, making them an attractive option for small businesses with limited resources. Despite their affordability, these systems deliver reliable performance and comfort.
    • Space Requirements: Single-split systems require both indoor and outdoor units, which means adequate space is necessary for installation. However, their smaller size compared to central systems allows for more flexibility in accommodating them within a building.

    Applications of Single-Split Systems

    Single-split systems are ideal for small commercial spaces such as individual offices, shops, and restaurants. Their affordability and compact design make them a practical choice for businesses seeking efficient climate control without breaking the bank.

    3. Multi-Split Systems

    Multi-split systems offer a versatile and efficient solution for midsize commercial properties. These systems work similarly to single-split systems but include multiple units that collaborate to provide seamless climate control.

    Key Features of Multi-Split Systems

    • Energy Efficiency: Multi-split systems utilize heat pumps to transfer heat from warm to cool areas, optimizing energy consumption and reducing operational costs. This energy-efficient approach aligns with sustainability goals and helps businesses reduce their carbon footprint.
    • Space-Saving Design: These systems require less outdoor space compared to single-split systems, making them suitable for properties with limited exterior space. The units can be mounted on walls or ceilings, allowing for greater design flexibility.
    • Customizable Configuration: Multi-split systems offer the flexibility to mount units on walls or ceilings and install air curtains over entrances. This adaptability allows businesses to customize their HVAC setup to suit their specific layout and design preferences.

    As per a recent report on Multi-Split Air Conditioning Systems, the market size was valued at approximately USD 21.3 billion in 2023 and is projected to grow at a CAGR of about 4.8% from 2024 to 2032.

    Applications of Multi-Split Systems

    Multi-split systems are well-suited for midsize commercial properties such as office suites, doctors’ offices, restaurants, and retail outlets. Their energy efficiency and customizable configuration make them a valuable choice for businesses seeking cost-effective climate control solutions.

    4. Variable Refrigerant Flow (VRF)

    Variable Refrigerant Flow (VRF) systems are known for their advanced technology and ability to provide customized climate control in larger commercial spaces. These systems offer a range of features that enhance comfort and efficiency.

    Key Features of VRF Systems

    • Multi-Zone Comfort: VRF systems can simultaneously heat and cool different zones within a building, providing personalized comfort for occupants. This zoning capability ensures that each area maintains its desired temperature, even in large structures.
    • Energy Efficiency: VRF systems offer high energy efficiency by adjusting the flow of refrigerant based on demand, minimizing energy consumption and operational costs. This efficiency aligns with sustainability goals and helps businesses achieve energy savings.
    • Heat Recovery Capability: Some VRF systems have the ability to recover waste heat from cooling zones and use it to heat other zones, enhancing overall efficiency and reducing energy usage. This feature makes VRF systems an environmentally friendly choice.

    Applications of VRF Systems

    VRF systems are suitable for larger commercial buildings that require precise climate control across multiple zones. Their energy efficiency and ability to provide customized comfort make them a preferred choice for businesses seeking advanced HVAC solutions.

    5. Heat Pump Systems

    Heat pump systems offer a versatile solution for providing both heating and cooling in various settings. These systems work by transferring heat between indoor and outdoor environments, making them an energy-efficient choice for climate control.

    Key Features of Heat Pump Systems

    • Dual Functionality: Heat pump systems provide both heating and cooling, eliminating the need for separate systems for each function. This dual functionality simplifies HVAC setup and reduces overall equipment costs.
    • Energy Efficiency: Heat pumps are highly efficient, often using less energy than traditional heating systems by moving heat rather than generating it. This efficiency translates to lower utility bills and a reduced environmental impact.
    • Installation Options: Heat pump systems are suitable for a range of applications, from residential homes to commercial buildings. They offer options for both ducted and ductless systems, providing flexibility in installation and design.

    Applications of Heat Pump Systems

    Heat pump systems are versatile and can be used in a variety of settings, from residential homes to commercial buildings. Their energy efficiency and dual functionality make them a sustainable choice for businesses seeking efficient climate control solutions.

    HVAC System Type Definition Applications Pros Cons
    Variable Refrigerant Flow (VRF) A system that uses refrigerant as the cooling and heating medium, allowing for multiple indoor units connected to a single outdoor unit. Large commercial buildings, hotels, and multi-family residential buildings. - Energy-efficient
    - Flexible zoning capabilities
    - Simultaneous heating and cooling in different zones
    - High initial cost
    - Complex installation and maintenance
    Rooftop Units (RTUs) Self-contained packaged HVAC systems installed on rooftops, providing heating and cooling for a specific area. Retail stores, warehouses, and office buildings. - Space-saving design
    - Easy installation and maintenance
    - Cost-effective for large spaces
    - Limited heating capacity in very cold weather
    - Can be less efficient than other systems
    Heat Pumps Systems that transfer heat from one location to another, providing both heating and cooling. Residential homes, commercial buildings, and some industrial applications. - Energy-efficient
    - Environmentally friendly
    - Versatile for different climates
    - Less effective in extremely cold temperatures
    - Initial installation cost can be high
    Single Split Systems An HVAC system that consists of one indoor unit and one outdoor unit, providing cooling or heating for one zone. Small commercial spaces and individual rooms in residential buildings. - Simple installation
    - Cost-effective for single zones
    - Quiet operation
    - Limited capacity
    - No zoning capabilities for larger spaces
    Multi-Split Systems Similar to single split systems but can connect multiple indoor units to one outdoor unit, allowing for different temperature settings in various rooms. Small to medium-sized commercial buildings and residential homes. - Flexible zoning options
    - Space-saving outdoor units
    - Energy-efficient
    - Higher initial costs than single split systems
    - More complex installation and maintenance

    Conclusion

    Selecting the right HVAC system for your commercial building is a critical decision that requires careful consideration. By understanding the different types of systems available and their unique advantages, you can make an informed choice that meets your building's needs while maximizing comfort and efficiency.

    Before making a decision, consider consulting with HVAC professionals from NY Engineers to assess your building's specific requirements and explore potential solutions. Additionally, staying informed about the latest advancements in HVAC technology can help you stay ahead of the curve and make the best choice for your building.

    In conclusion, HVAC systems play a crucial role in maintaining comfortable and healthy indoor environments. By exploring the different types of systems available and understanding their applications and benefits, you can make informed decisions that align with your needs and goals. Whether you're a homeowner, property manager, or HVAC professional, investing in the right HVAC system will enhance comfort, improve efficiency, and contribute to a more sustainable future.
