Specifying Reliable Connectors for Critical Facilities: Data Centers, Labs and Hospitals

On most critical facility drawings, the electrical design stops at a receptacle on the wall or a power whip under a raised floor. The cord, the plug and the connector on the back of a patient monitor, a mass spectrometer or a storage array are left to the equipment vendor. A single loose plug at one of those points can take down equipment that sits on a fully redundant power and data system.

For MEP engineers working on data centers, laboratories and hospitals, writing a few rules for that connection layer closes the gap between the building systems and the equipment they serve.

Where the Connector Sits in the Specification

In CSI MasterFormat, building wiring belongs to Division 26, while the equipment that plugs into it can sit elsewhere: Division 11 for laboratory, healthcare and other equipment, Division 27 for communications cabling, or outside the construction documents entirely when the owner buys it directly. Who is responsible for the connector therefore depends on how each project is set up. The specifications, the procurement route (owner-furnished and owner-installed, owner-furnished and contractor-installed, or contractor-furnished) and the contract scope all decide it. On many projects the receptacle is clearly in the electrical contract and the equipment cord is clearly the vendor's, but the interface between them is only covered if the documents assign it. A responsibility matrix in Division 01 that lists each critical equipment type against who furnishes, installs and connects it removes most of that ambiguity.

A short performance clause in the equipment coordination requirements fixes that. It lists what any interface on critical equipment must provide: positive locking, a stated number of mating cycles, sealing suited to the cleaning regime, shielding where signal quality matters, and keying or labeling that prevents a wrong connection. The clause names no product; it is a checklist for the commissioning team when the equipment arrives on site. Where equipment is owner-furnished, the same requirements can go into the owner's purchasing documents, so vendors quote against them. As an example, a laboratory clause might read: "Connectors on instrument signal cables shall maintain 360-degree shield continuity through the connector shell. Connector housings and seals at benches shall be compatible with the cleaning agents listed in the facility cleaning protocol, as confirmed in the vendor submittal."

Data Centers: Locking and Mating Cycles

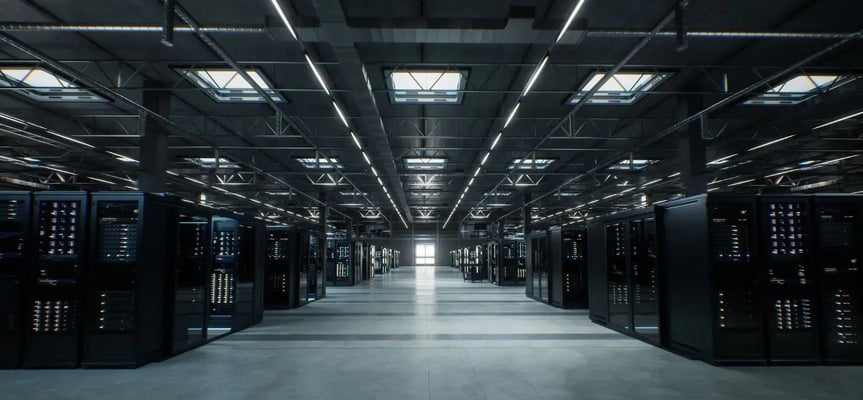

Data halls are often designed for concurrent maintenance, so equipment is moved, replaced and reconnected while the rest of the room stays live. Each of those operations is a mating cycle, and each one is a chance for a cable to be left half seated. A technician working in a crowded rear aisle can dislodge a neighboring cord while pulling the one being replaced, and on a single-corded device that is an outage.

Locking connectors on power distribution and on critical links reduce that risk. Labeling and color coding of the A and B feeds belong in the same clause, because a locked connector on the wrong feed still defeats the redundancy the design paid for. In practice, that can mean locking or retained versions of the IEC 60320 C13/C14 and C19/C20 couplers between rack PDUs and IT equipment, and twist-lock plugs and receptacles such as NEMA L6-30 or L21-30 on the rack PDU input. In a 2N design, the clause can also require that every dual-corded device is connected to both feeds and that this is checked during commissioning.

Laboratories: Shielding and Chemical Resistance

Lab equipment raises two separate problems: electromagnetic interference (EMI) on instrument signals, and chemical attack from cleaning.

Analytical instruments such as mass spectrometers, NMR systems, electron microscopes and imaging systems work with small signals, and a shielded cable only protects them if the shield continues through the connector without a gap. The most effective termination is a 360-degree bond between the cable braid and a metal connector shell or backshell. A shield brought out as a short wire (a pigtail) and landed on a pin or terminal adds inductance, and at higher frequencies it lets through much of the noise the braid was meant to block. When comparing connector options, engineers can ask vendors for shielding effectiveness data in dB across the frequency range that matters for the instrument, rather than accepting a simple "shielded" label.

Whether the shield is grounded at one end or both is a design decision, not a fixed rule. Bonding at both ends gives better protection at high frequencies but can create a ground loop that adds low-frequency hum to sensitive analog measurements; grounding at a single point avoids the loop at the cost of high-frequency performance. The instrument manufacturer's installation requirements usually settle the question, and the electrical design should support them with a clean equipotential ground reference at the instrument location.

The building side matters as much as the connector. Electrical engineers rarely choose the instrument, but they do decide where noisy loads such as variable frequency drives (VFDs) and large transformers sit, how far instrument cables run, and how they are separated from power wiring. Specifying shielded, symmetrical VFD output cable, routing it in separate raceway from instrument and data cabling, and keeping drive enclosures out of instrument rooms all reduce the noise the connectors have to handle. For example, an exhaust fan VFD in the ceiling space above a mass spectrometry lab can couple noise into instrument cables run through the same space, and a coordination drawing that shows both catches the conflict early.

The second problem is cleaning. Benches and equipment in wet labs, vivariums and cleanrooms are wiped down with agents such as 70% isopropyl alcohol, quaternary ammonium disinfectants, sodium hypochlorite or hydrogen peroxide, and some spaces are decontaminated with vaporized hydrogen peroxide. Over time these can swell or harden elastomer seals, craze some plastics and corrode plated metal. An IP rating under IEC 60529 describes protection against dust and water only, so an IP67 connector is not automatically resistant to a disinfectant. The specification should list the agents in the facility's cleaning protocol and require the vendor to confirm that the housing, insulator and seal materials are compatible with them, for example stainless steel or PEEK housings with seal compounds selected for those chemicals. Bench power and data outlets specified to the same requirement avoid a weak point on the wall side of the connection.

Hospitals: Patient Care Equipment and NFPA 99

Patient care equipment moves all day. A monitor travels with the bed from the emergency department to imaging and back, and every move ends with someone reconnecting cables. On the wall side, NEC Article 517 requires listed hospital-grade receptacles at applicable patient bed locations in general care and critical care spaces. These receptacles are commonly identified by a green dot.

On the equipment side, there is no single connector type. Mains cords, sensor leads and data cables each use different interfaces, chosen by the device manufacturer and evaluated under the IEC 60601-1 family of medical electrical equipment standards (ANSI/AAMI ES60601-1 in the US). Many devices simply use a hospital-grade plug, while others use screw-locking, bayonet or proprietary connectors. Push-pull circular connectors are one option found on some equipment, such as patient monitoring cables, endoscopy systems and surgical devices, because they latch on insertion and release only when the outer sleeve is pulled back, so a tug on the cable does not separate them.

For equipment where a disconnection would interrupt monitoring or therapy, the next decision is whether to write a locking requirement into the equipment clause. Before drafting the clause, review the application pages of a push-pull specialist such as this Swiss manufacturer for a quick look at latching connectors, sealing options and custom cable assemblies on real medical and test equipment.

In the US, the two main codes do different jobs. NEC Article 517 covers the electrical installation in health care facilities, including the essential electrical system, receptacles in patient care spaces, grounding in patient care areas and isolated power systems. NFPA 99, the Health Care Facilities Code, sets risk-based requirements for systems and equipment. CMS adopted the 2012 edition of NFPA 99 for applicable healthcare providers and suppliers, effective July 5, 2016. The applicable requirements and code editions depend on the facility and the regulations governing the project. Which editions apply on a given project depends on what the authority having jurisdiction has adopted. ANSI's summary of NFPA 99 notes that the code became risk-based with its 2012 edition, after years as an occupancy-based document, and that its scope covers information technology and communication systems as well as electrical systems and equipment. Under that approach, systems are assigned to Categories 1 to 4 according to the consequence of a failure for patients and caregivers, from major injury or death in Category 1 down to no impact in Category 4. NFPA 99 does not prescribe connector types, but the same reasoning helps decide where a locking or retained connection is worth specifying: an interface whose failure would interrupt life support or critical monitoring deserves more attention than one on a nurse station printer. Bringing biomedical engineering into that discussion during design works better than leaving it until after occupancy.

Commissioning the Connection Layer

A clause only works if someone checks it. Connector checks can be added to the commissioning scripts next to load bank tests and transfer switch checks, with the acceptance criteria taken from the approved submittals and the equipment manufacturer's installation instructions rather than from a generic list. Depending on the project, that can mean confirming that locking connectors and cord retention devices are fully engaged, that A and B feed labels match the one-line diagram, and that cable bend radius and strain relief meet the vendor's requirements.

For shielded instrument and data cables, the check is that shields are terminated the way the design and the instrument manufacturer specify: at one end, at both ends, or through a 360-degree backshell. A shield bonded at both ends where the design calls for single-point grounding is as much a defect as one left unterminated, so the inspection sheet should state the intended method for each cable type.

The question that usually remains open at handover is ownership. Facilities staff, biomedical engineering and the IT team each replace equipment over the life of the building, and the operations and maintenance manual is the place to name which of them keeps the connector requirements current.
