Standpipe Systems: Everything You Should Know

Fires in high-rise buildings are among the most dangerous emergencies firefighters face, requiring quick action, strategic tools, and efficient systems to gain control. One such critical system is the standpipe system.

These often-overlooked marvels of fire safety stabilize firefighting efforts in complex structures, providing accessibility to water on every floor.

This article breaks down everything you need to know about standpipe systems, including what a standpipe system is, types of standpipe systems, building code regulations, and emerging trends for 2025.

What Is a Standpipe System

A standpipe system is a vertical water piping system installed in buildings to assist firefighters during a fire emergency.

This system delivers water to hose outlets on multiple floors, eliminating the logistical nightmare of carrying heavy-duty hoses up several stories.

Who designs the Standpipe System? Why?

The standpipe system is designed by qualified engineers or fire protection specialists who have an in-depth understanding of building codes, safety regulations, and firefighting requirements.

Their expertise ensures the system is tailored to the specific needs of the building, taking into account factors such as the building's height, occupancy type, and potential fire hazards.

The primary objective of the design is to provide a reliable and efficient means for firefighters to control fires, protecting both the building's occupants and property.

By adhering to strict safety standards and local fire codes, these professionals ensure the system is both functional and compliant, ultimately supporting the critical mission of life safety.

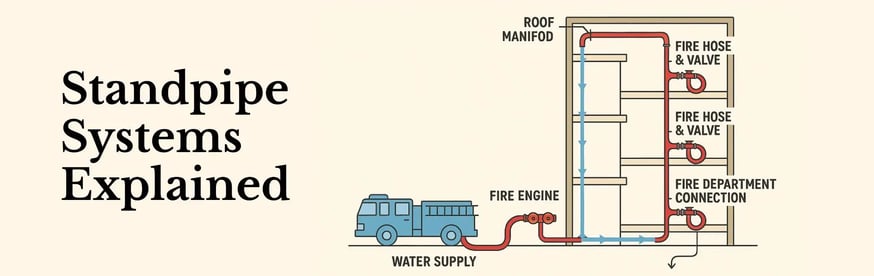

How Standpipe Systems Work

Standpipe systems connect directly to the building’s fire pump, water tank, or an external fire hydrant that the fire department can hook into during an emergency.

• Main Riser: The vertical pipe that runs through stairwells from the ground floor to the top.
• Hose Valve Outlets: Located on each floor, usually near staircases, these allow firefighters to connect their hoses.
• Water Under Pressure: Ensures instant access for firefighters upon connection.

This design ensures timely firefighting, saving lives and property while minimizing the spread of fire.

Why Are Standpipe Systems Important?

Time is the most critical factor in managing fires. Accessing water quickly and efficiently can mean the difference between containment and widespread damage.

By delivering water to each floor, standpipe systems allow firefighters to take immediate action.

A Cautionary Lesson from History

In 1970, a fire at One New York Plaza revealed significant flaws in standpipes, such as poor maintenance and inadequate design. These mistakes caused dangerous delays, emphasizing the need for proper system design, testing, and regular maintenance. This incident ushered in essential reforms, particularly in fire safety for high-rise structures like those seen in NYC today.

Upcodes - What Does the Code Say?

Regulatory codes provide essential guidance in the design and implementation of fire protection systems.

Understanding these codes ensures that installations meet safety, performance, and compliance standards.

They outline specific requirements regarding system capacity, functionality, and operational guidelines, leaving little room for error in securing the safety of a building’s occupants and property.

NFPA 14 - Standard for the Installation of Standpipe and Hose Systems

NFPA 14 establishes the criteria for the installation of standpipe and hose systems, which serve as a vital component in fire protection, particularly in high-rise buildings.

This standard covers aspects like system pressure, pipe sizing, and inspection requirements, ensuring that firefighters have reliable access to water during an emergency.

NFPA 20 - Standard for the Installation of Stationary Pumps for Fire Protection

NFPA 20 focuses on the design and installation of stationary fire pumps, which are critical for providing the required water pressure to fire protection systems.

It mandates specifications for pump types, installation environments, and maintenance protocols to guarantee that the systems operate effectively when needed, safeguarding lives and property.

Compliance with Fire Safety Codes

When it comes to regulatory compliance, standpipes must meet specific standards, such as those outlined in the 2021 International Building Code (IBC) Section 905 and the NFPA 14 Standard for the Installation of Standpipe and Hose Systems.

As per NFPA research report, In buildings equipped with fire protection systems—such as standpipes and sprinklers—civilian fire death rates are significantly lower, and fire spread is more often confined to the object or room of origin. This shows that proper fire infrastructure helps prevent major losses and saves lives annually across the U.S.

Types of Standpipe Systems

Just like buildings, standpipe systems vary to suit different needs. Here’s a breakdown of the types of standpipe systems.

1. Wet Standpipe Systems

Always filled with pressurized water, these are ready for immediate use. They are commonly found in settings that require instant readiness, such as hospitals and shopping malls.

2. Dry Standpipe Systems

These remain empty until connected to an external water source, like a fire department truck, making them ideal for unheated environments where water could freeze.

3. Combination Standpipe and Sprinkler Systems

These systems integrate sprinklers alongside hose connections, effectively doubling as fire suppression and firefighting tools.

Proper fire standpipe system design requires adherence to local building codes and NFPA standards to ensure sufficient water pressure, flow rates, and coverage. These systems must be carefully planned to accommodate the specific needs and layout of the building.

4. Manual Wet Systems

Manual wet systems require a fire truck or external pump to provide pressure.

5. Automatic Dry Standpipes

These dry systems automatically provide pressurized air and water when activated.

Common Locations for Standpipe Systems

Standpipe systems are typically required for buildings and structures meeting specific height and square footage criteria, including:

• High-rise buildings over three stories or taller than 30 feet.
• Shopping malls.
• Airports and stadiums.
• Hospitals and other large facilities.

Their widespread application ensures comprehensive fire safety strategies across various infrastructure types.

For a more detailed overview of standpipe system applications, particularly in urban environments like Chicago, check out our comprehensive blog Fire Suppression Standpipe Application in Chicago.

New Trends in Standpipe Systems for 2025

With technological advancements transforming fire safety systems, here are some trends reshaping building’s standpipe systems in the U.S.:

1. Smart Monitoring for Standpipes

Sensors and IoT technology are being integrated into modern standpipe designs to monitor pressure, flow rate, and maintenance cycles in real time. This allows for immediate alerts if any component of the system malfunctions.

2. Eco-Friendly Firefighting Systems

New eco-conscious materials and practices are being used for standpipe designs. For instance, supply chains are moving toward sourcing components with lower carbon footprints.

3. Enhanced Testing Protocols

Building codes are increasingly favoring advanced testing technologies to ensure maximum efficiency and reliability during emergencies.

Maintaining Standpipe Systems

To ensure functionality, standpipe systems require regular inspection and maintenance as per NFPA guidelines.

At a minimum, these tasks should include annual performance tests, bi-annual valve checks, and consistent monitoring of pressure levels using advanced diagnostic tools.

Choosing the Right Standpipe System for Your Building

Before installing a building’s standpipe system, consider factors like the size and use of your building, local fire codes, and the type of standpipe that best suits your fire safety needs.

Consulting professionals with expertise in the latest fire system technologies can ensure both compliance and efficiency.

Professional standpipe system design services ensure that your system is tailored to your building’s unique layout and fire safety requirements.

Expert designers integrate compliance with local codes while optimizing system performance for maximum safety.

Fire Safety Is Non-Negotiable

Investing in high-quality standpipe systems is not just essential; it’s potentially life-saving. These vertical water networks provide critical support for emergency teams, ensuring swift action to curb fire damage and loss.

For trend-based updates on fire safety innovations or in-depth guidance on integrating advanced types of standpipe systems into your building, follow our blog or reach out to our experts today.
