Heat pumps have emerged as one of the most efficient and versatile solutions for year-round climate control in modern buildings. Understanding how these systems work is crucial for property owners, developers, and facility managers seeking to optimize energy efficiency and reduce operational costs.
This comprehensive guide explores the fundamental principles of heat pump operation, different system types, key components, and practical applications to help you make informed decisions about your building's heating and cooling needs.
What is a Heat Pump?
A heat pump is a mechanical device that provides both heating and cooling for buildings by transferring heat rather than generating it. Unlike traditional heating systems that burn fuel or use electric resistance to create heat, heat pumps move existing heat from one location to another using refrigeration principles.
The International Mechanical Code (IMC) 2021
defines a heat pump as a refrigeration system designed to supply heating or cooling by transferring heat. This dual functionality makes heat pumps an intelligent all-in-one solution for maintaining comfortable indoor temperatures throughout the year.
Heat pumps operate on the same fundamental principles as refrigerators and air conditioners, but with a crucial difference: they can reverse their operation. This reversibility allows them to extract heat from outdoor air, ground, or water sources and transfer it indoors during winter, while removing heat from indoor spaces and rejecting it outdoors during summer.
The key advantage of heat pump systems lies in their efficiency. Rather than converting electricity directly into heat like traditional electric heaters, heat pumps can deliver three to four times more heating energy than the electrical energy they consume. This efficiency translates to significant energy savings and reduced utility bills for building owners.
How Does a Heat Pump Work?
Heat pump systems operate using four primary components working together in a closed refrigeration loop: an evaporator, a compressor, a condenser, and an expansion valve. The system also includes a crucial component called a reversing valve that enables the heat pump to switch between heating and cooling modes.
The refrigeration cycle begins with a low-temperature, low-pressure refrigerant liquid entering the evaporator coil. In heating mode, the evaporator is located outside and absorbs heat from the outdoor air, even when temperatures are well below freezing. The refrigerant absorbs this heat energy and evaporates into a gas.
The compressor then pressurizes this refrigerant gas, significantly increasing its temperature and pressure. This high-temperature, high-pressure gas travels to the condenser coil located indoors, where it releases heat into the building's air distribution system. As the refrigerant gives up its heat, it condenses back into a liquid.
The expansion valve reduces the pressure of the liquid refrigerant, cooling it before it returns to the evaporator to repeat the cycle. The reversing valve controls the direction of refrigerant flow, allowing the system to reverse this process for cooling operations.
During summer cooling mode, the reversing valve redirects refrigerant flow so that the indoor coil becomes the evaporator (absorbing heat from inside) and the outdoor coil becomes the condenser (rejecting heat outside). This flexibility makes heat pumps exceptionally versatile for year-round comfort control.
What Types of Heat Pumps Are There?
Heat pump technology encompasses several distinct types, each designed for specific applications and environmental conditions. The two primary categories are air source heat pumps and ground source heat pumps.
Air Source Heat Pump
Air source heat pumps extract thermal energy from outdoor air and represent the most common type of heat pump installation. These systems include outdoor and indoor units connected by refrigerant lines. The outdoor unit houses the evaporator coil (in heating mode), compressor, and fan, while the indoor unit contains the air handler and distribution components.
Modern air source heat pumps can operate effectively in temperatures as low as -15°F, thanks to advanced refrigerant technologies and variable-speed compressors. However, their efficiency decreases as outdoor temperatures drop, making them most suitable for moderate climates.
Air source systems offer several advantages, including lower heat pump installation costs, easier maintenance access, and faster installation compared to ground source alternatives. They're particularly well-suited for residential applications and smaller commercial buildings where space constraints limit ground source options.
For tailored solutions using this technology, our Air Source Heat Pump Design service provides expert guidance, ensuring optimal system performance for your specific needs.
Ground Source Heat Pump
Ground source heat pumps, also known as geothermal systems, utilize the Earth's stable underground temperature to provide heating and cooling.
According to the U.S. Department of Energy, geothermal heat pumps can reduce energy consumption by 25–50% compared to conventional heating and cooling systems.
These systems circulate a water-based solution through underground loops buried horizontally in trenches or vertically in boreholes. The relatively constant ground temperature (typically 45-75°F depending on geographic location) provides an excellent heat source in winter and heat sink in summer.
Ground source heat pumps deliver superior efficiency and longevity compared to air source systems. The underground loop system can last 50+ years, while the indoor components typically operate for 20-25 years. However, ground source systems require higher upfront investment and more complex installation procedures.
For comprehensive Heat Pump system design, consulting with experienced MEP engineers ensures proper sizing and configuration for optimal performance.
Important Components of a Heat Pump System
Understanding heat pump components helps building owners and facility managers make informed decisions about system maintenance and upgrades. Each component plays a critical role in overall system performance and efficiency.
Compressor: The heart of the heat pump system, the compressor pressurizes refrigerant gas and circulates it through the system. Variable-speed compressors in modern heat pumps adjust capacity based on heating and cooling demands, improving efficiency and comfort control.
Reversing Valve: This component determines whether the heat pump operates in heating or cooling mode by controlling refrigerant flow direction. The reversing valve allows the same system to provide year-round climate control without requiring separate heating and cooling equipment.
Evaporator and Condenser Coils: These heat exchangers facilitate thermal energy transfer between the refrigerant and air or water. The evaporator absorbs heat while the condenser releases it. In heat pumps, these functions reverse depending on operating mode.
Expansion Valve: This component regulates refrigerant flow and pressure reduction, ensuring optimal system performance across varying load conditions. Thermostatic expansion valves automatically adjust to maintain proper refrigerant flow rates.
Air Handler: The indoor air handler contains the blower fan, indoor coil, and filtration components. It distributes conditioned air throughout the building via ductwork systems.
Defrost Controls: Heat pumps include defrost systems to remove ice buildup on outdoor coils during heating operation. These controls monitor coil temperature and initiate defrost cycles when necessary to maintain efficiency.
How Heat Pumps Work in Summer and Winter
Heat pump operation varies significantly between seasons, with the reversing valve enabling seamless transitions between heating and cooling modes.

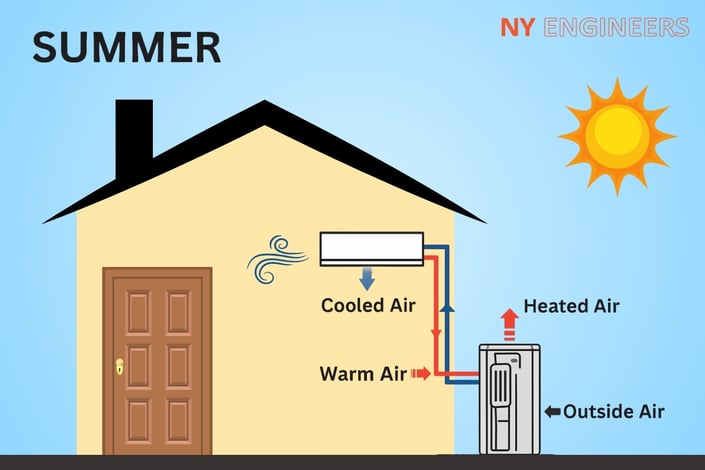

Summer Cooling Operation
During summer months, heat pumps function similarly to conventional air conditioning systems. The indoor coil serves as the evaporator, absorbing heat from interior spaces. The refrigerant evaporates as it absorbs heat, then travels to the outdoor compressor, where it's pressurized and heated further.
The high-temperature refrigerant gas flows to the outdoor condenser coil, where it releases heat to the outside air and condenses back to liquid. The expansion valve reduces refrigerant pressure before it returns indoors to repeat the cooling cycle.
Modern heat pumps achieve excellent cooling efficiency through variable-speed compressors and advanced refrigerants. Many systems also provide superior humidity control compared to traditional air conditioning equipment.
Winter Heating Operation
Winter heating represents the heat pump's most impressive capability - extracting useful heat from cold outdoor air. Even when outdoor temperatures drop below freezing, significant thermal energy remains available for extraction.
The outdoor coil functions as the evaporator during heating mode, with refrigerant absorbing heat from outdoor air. The compressor pressurizes this refrigerant, raising its temperature well above indoor air temperature. The indoor coil becomes the condenser, releasing heat into the building's air distribution system.
Heat pumps maintain heating capacity down to their design temperature limit, typically between -5°F and -15°F for modern air source units. Below these temperatures, auxiliary heating elements may activate to supplement heat pump output.
For a more in-depth understanding of the functionality and advantages of heat pumps during winter, refer to our detailed blog on the Role of heat pumps in winter. This resource comprehensively outlines how heat pumps efficiently manage indoor heating, even in sub-freezing temperatures.
Where is Heat Pump Technology Used?
Heat pump applications span diverse building types and industries, reflecting their versatility and efficiency benefits.
Residential Applications: Single-family homes, townhouses, and apartment complexes increasingly rely on heat pump systems for primary heating and cooling.
The International Energy Agency reports that residential heat pump sales grew 15% globally in 2024, driven by energy cost concerns and environmental considerations.
Commercial Buildings: Office buildings, retail centers, schools, and healthcare facilities utilize heat pump technology for zone-specific climate control. Commercial applications often employ multiple smaller units or large-capacity systems designed for specific building requirements.
Industrial Facilities: Manufacturing plants and warehouses use industrial-grade heat pumps for process heating, space conditioning, and waste heat recovery. These applications can achieve substantial energy savings while reducing carbon emissions.
Hospitality and Healthcare: Hotels, hospitals, and nursing facilities benefit from heat pumps' quiet operation, precise temperature control, and energy efficiency. These applications require reliable year-round operation and often incorporate backup systems for critical areas.
How Does a Heat Pump Save Energy?
Heat pump energy savings stem from their fundamental operating principle of moving heat rather than generating it. This efficiency advantage becomes particularly significant when compared to traditional heating systems.
Coefficient of Performance (COP): Heat pumps typically achieve COP values between 2.5 and 4.0, meaning they deliver 2.5 to 4 times more heating energy than the electrical energy they consume. In contrast, electric resistance heating has a COP of 1.0, while fossil fuel systems rarely exceed 0.8-0.9 efficiency.
Seasonal Energy Efficiency Ratio (SEER): Modern heat pumps achieve SEER ratings of 14-22 for cooling operations, significantly exceeding minimum efficiency requirements. Higher SEER ratings translate directly to reduced electricity consumption and lower utility bills.
Heating Seasonal Performance Factor (HSPF): This metric measures heating efficiency over an entire season. Quality heat pumps achieve HSPF ratings of 8-13, indicating substantial energy savings compared to conventional heating systems.
According to the U.S. Department of Energy, heat pumps can reduce electricity use for heating by approximately 50% compared to electric resistance heating, and high-efficiency models can save more than 20% compared to conventional systems.
Variable-speed technology further enhances efficiency by allowing heat pumps to modulate capacity based on actual heating and cooling demands. This prevents the energy waste associated with constant on-off cycling in single-speed systems.
For detailed analysis of potential energy savings and heat pump design cost evaluation, professional energy modeling services can provide building-specific projections and payback calculations.
Maximizing Heat Pump Performance for Your Building
Heat pump technology continues advancing rapidly, with new refrigerants, control systems, and component designs improving efficiency and expanding application possibilities. Understanding how heat pumps work empowers building owners and facility managers to make informed decisions about heating and cooling system upgrades.
Professional engineering consultation remains essential for optimal heat pump system design and implementation. Factors such as building load calculations, climate conditions, utility rates, and integration with existing systems require careful analysis to ensure maximum energy savings and occupant comfort.
