Looking for Fire Alarm Design?

Contact Us →
Fire Alarm Design

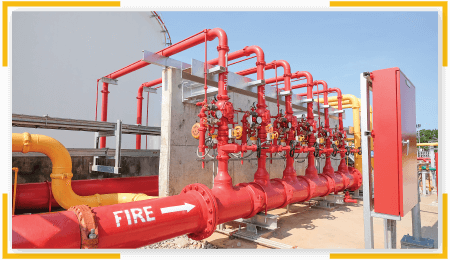

Fire-Protection-System_Border-03

Fire alarms have a very important role in buildings, since they warn occupants when a fire is detected. Modern fire alarm systems can also alert the local fire department, ensuring a quick response. They can also be configured notify building managers who are away from the building, and other key personnel.

When building systems malfunction, they normally cause disruption for occupants. For example, an HVAC issue can make indoor temperatures uncomfortable. However, when fire protection measures fail, human lives and property are at stake. For this reason, there is zero tolerance for failure when designing and installing a fire alarm system. Proper maintenance is also important to ensure ongoing protection.

Depending on the type of building and local building codes, some fire protection measures may be optional. However, building owners should consider fire alarms even when they are not required in a specific project, due to the protection they offer.

Even if a building is never affected by fire in its entire service life, fire alarms and other protection measures bring several benefits. For example, insurance companies may offer better plans and lower premiums when a building is well protected against fire. In buildings with commercial spaces for rent, reliable fire protection can help convince tenants to sign a contract.

Importance of a Reliable Fire Alarm Design

Fire alarms are normally activated by heat or smoke detectors. However, they can also be activated with manual controls, or with flow sensors in fire sprinkler systems. There are two main ways in which a fire alarm can malfunction:

  • Activating by accident when there is no fire, causing a false alarm.
  • Not activating when a fire occurs, which is much more dangerous.

A false alarm is disruptive for a building, since it can cause an unnecessary evacuation and suspension of activities. To prevent false alarms during installation, fire protection engineers recommend installing all other system components before the communication lines. Frequent false alarms must be prevented at all costs, since they can confuse occupants. When there is a real fire incident, occupants may not evacuate believing it’s another false alarm.

Not activating during a fire is a much more serious issue in alarm systems: this leaves less time to evacuate, and the fire department is not notified immediately. A malfunctioning fire alarm system can also have legal consequences, and insurance coverage may be voided.

In addition to being reliable, a fire alarm system must offer durability. Consider that buildings last for decades, and fire protection systems should be equally durable to minimize repairs and part replacements.

Fire Alarm Design: Meeting Standards and Building Codes
Drawing_Borders-06

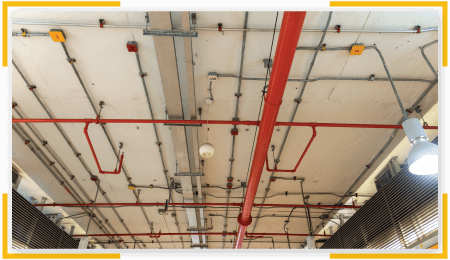

Since fire alarms have a critical function in buildings, they are subject to stringent design standards. While this increases the complexity and installation cost of fire alarm systems, it is necessary to ensure they will always work properly.

The industry standard for fire alarms is the NFPA 72 National Fire Alarm and Signaling Code, and there are also design requirements in the NFPA 101 Life Safety Code. These standards were developed by the National Fire Protection Association, which also provides design requirements for sprinkler systems (NFPA 13), and other fire protection measures and building systems.

  • NFPA 72 covers all requirements of fire alarm systems: design, testing, maintenance, operation and minimum performance requirements.
  • On the other hand, NFPA 101 covers more general requirements, such as the occupancy groups where fire alarms should be used.
  • Since fire alarm systems have many electrical components, they must also meet the requirements of the NFPA 70 National Electrical Code. Any electrical installation that does not follow code creates a fire hazard, and this includes fire alarm systems.

Local governments use NFPA standards as reference when establishing the fire protection requirements in their building codes. Building owners with properties in many cities must be aware that there are code differences. Working with a qualified engineering firm is important to make sure that local requirements are met.

In addition to meeting NFPA standards, fire alarm systems must also use components that are listed by Underwriters Laboratories (UL) or a similar certification laboratory. If the connections and devices of a fire alarm system create a fire risk themselves, they defeat their own purpose.

When new fire protection codes are published, existing fire alarm systems do not always require an upgrade. However, if a specific feature is considered critical, it may be required retroactively for existing fire alarm systems. Fire protection engineers recommend getting a flexible design that is easy to upgrade if needed.

The following recommendations can improve the reliability of fire alarm systems in the long run:

  • The design should consider future component failures, and simplify their replacement.
  • Specifying the right equipment, considering situational and environmental conditions.
  • Using listed enclosures (UL or equivalent) to protect components when needed.
  • Working with reliable manufacturers who have local presence, to ensure the availability of replacements when needed.

In New York City, retroactive fire protection requirements are mandated with Local Laws. An example is Local Law 26 of 2004, which many fire sprinklers mandatory for many buildings.

Looking for Fire Alarm Design?

Contact Us →
Understanding the Basics of a Fire Alarm System

As previously mentioned, fire alarm systems are designed to detect fire and smoke, and this activates signaling devices like horns and strobe lights. However, fire alarms can also activate with other inputs:

  • Manual pull stations, which can be activated directly by occupants. Manual stations are useful when fire or smoke are visible, but the alarm has not responded yet.
  • Fire alarms can also be activated by water flow sensors in fire sprinkler systems. Since sprinklers open with heat, water movement indicates that fire has triggered sprinklers somewhere in the building.

Fire alarm systems can also alert owners and facility managers when they are away from the building. Most importantly, fire alarms can alert the local fire department, ensuring a quick response. Automatic sprinklers are recommended to complement fire alarms, even when not required, since they can extinguish many fires on their own.

A fire alarm system has three possible states: normal, alarm and trouble. The current state is displayed permanently by the control panel.

  • Fire alarm systems are in the normal state most of the time, when no fires or performance issues have been detected.
  • The alarm state indicates that a fire has been detected - directly with smoke or heat sensors, or indirectly by measuring flow in the sprinkler system. The system also enters the alarm state when a manual pull station is used.
  • The trouble state indicates there is an issue that prevents the alarm system from functioning properly. A trouble state is often caused by an open circuit, which interrupts the power supply for system components.

A fire alarm system in the trouble state cannot detect fires reliably, and the cause must be found and solved as quickly as possible. If a fire occurs when the alarm system is in the trouble state, the building owner can face serious legal consequences, and the insurance company may refuse coverage for any damage caused.

Open circuits can be detected with an end-of-line resistor. The resistor is connected at several points between the last device and the control panel, while voltage and current are measured. The fault location can be pinpointed based on how voltage and current respond at different connection points.

A fire alarm system also enters the trouble state if there is a communication issue that prevents notifications. The system sends test notifications at regular intervals, to ensure all communication systems are working properly.

Main Components of a Fire Alarm Design

The main components of a fire alarm system are the following:

  • Initiating devices
  • Indicating appliances
  • Control panel
  • Sealed batteries
  • Auxiliary devices

Initiating devices activate the alarm system, as their name implies. These devices include smoke detectors, manual pull stations and sprinkler flow sensors. They typically use 2-wire or 4-wire circuits, and a 24 VDC power source. These devices are divided into zones, where each zone is connected to the control panel with each own circuit.

Initiating devices are connected in parallel, with ungrounded wires that are isolated from all metallic raceways. The connection polarity is critical for proper functioning, since they are direct current devices.

Indicating appliances complement the function of initiating devices, announcing that the alarm system has activated. Some examples of indicating appliances are horns, strobe lights, chimes and bells. Depending on the application, these devices may be weatherproof, or rated for hazardous locations.

The control panel contains the user interface, branch circuit connections, and all electronic components needed to operate the fire alarm system. Each alarm zone has a separate circuit board, allowing modifications and maintenance without affecting other zones. The control panel displays the system state, and a touchpad is provided for user inputs.

Fire protection engineers recommend installing the control panel in a staffed or centralized location. Some viable options are the building security headquarters, the telephone switchboard room, or a maintenance office. The control panel monitors the voltage and current on all zone circuits, detecting possible issues as soon as they occur.

Sealed batteries are used as backup power for fire alarm systems. Since fire can damage the electrical circuits in a building, fire alarms cannot depend only on them. With backup batteries, a fire alarm system can stay operational even if the electrical installation has been damaged. Sealed batteries may be contained in the fire alarm control panel, or they can have a separate enclosure. In terms of function, fire alarm batteries are similar to emergency lighting batteries.

Fire alarm systems also use auxiliary devices like LED remote annunciators, LED zone indicators, alarm silencing switches, and electromagnetic door holders.

How Technology Has Improved Fire Alarm Systems

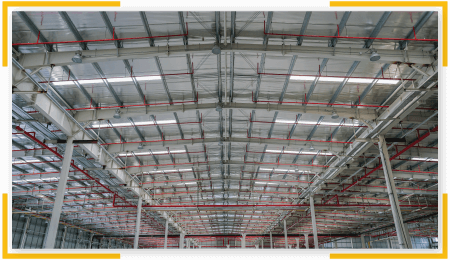

Drawing_Borders-05

Information technologies have made fire alarms more reliable. Older fire alarm systems can only monitor general zones, while newer installations have addressable components. For example, older installations only indicate the zone where a fire occurs, while modern systems can identify the exact fire or smoke sensor that activated the fire alarm.

Existing fire alarm systems can be upgraded without a complete replacement. Normally, they only need additional wiring and communication features. The circuit boards on older control panels will likely need a replacement to use addressable components.

In the NFPA 72 standard, addressable circuits are designated as signaling line circuits (SLC). Some equipment suppliers produce SLCs that support dozens of devices. However, fire protection engineers don’t recommend using SLCs at full capacity, leaving space for additions or modifications. Having too many devices on the same circuit is not recommended either, since a fault can disable all of them simultaneously.

Signaling line circuits are classified into Class A and Class B, based on how they are wired:

  • Class A circuits use 4 wires, providing a redundant connection for all devices. If one of the wires is damaged or disconnected, the fire alarm can continue operating.
  • Class B circuits only use 2 wires, and all devices depend on a single connection. The circuit cannot operate properly if one of the wires is damaged or disconnected.

Thanks to their redundancy, Class A circuits offer better protection than Class B circuits. Wiring and installation costs are increased with Class A circuits, but in return the fire alarm system becomes more reliable.

Oversizing SLCs is not recommended by fire protection engineers. Larger wires increase the capacitance of an SLC, causing signal distortion and slower communication. On the other hand, the notification appliance circuits (NAC) that power horns and other indicating appliances can be oversized with no problem.

Fire alarms can also be designed as part of an emergency communication system (ECS). Unlike a conventional fire alarm system, which only detects fire, an ECS notifies emergency conditions of many types (including fire).
