Steam Domestic Hot Water Generation

Steam Domestic Hot Water Generation

For many building owners and lessees, having a reliable source of hot water will be key to various operations including things like hose stations, wash down stations, temperature control, and for direct use in their buildings. There are numerous options available to generate hot water for large commercial buildings that utilize steam to heat the water. Each system and method has its pros and cons in addition to its practicality for each application.

One common example for a large scale hot water generation using steam is utilizing a centralized steam plant to generate the hot water. There are quite a few facilities including school campus like complexes that utilize a centralized steam plant as a steam to hot water generator. The steam is generated from a very large boiler and is then piped to numerous buildings around the campus or whatever type of facility is employed.

Steam to Hot Water Generator HVAC Heating

Typically many buildings utilize steam for heating and hot water for domestic uses like showers, laundry, washing dishes, laundering garments, and various other domestic uses. Domestic use is any water that is used at the point of use inside or outside a building. The steam is typically under high pressure and for this reason, it's safer to deliver it to a designated mechanical room, cut back on the pressure, and run the steam through a steam to hot water generator.

A steam to hot water generator is device quite like a big heat exchanger where at one end the steam is delivered and at the opposite end, water is delivered. When the steam runs through the heat exchanger it exchanges heat with the steam, thereby heating the water. Thus, creating hot water for domestic use and heating use during the winter.

It is necessary that the method is controlled so the recent water generated doesn't get too hot. The recent water made are often moved through hot water coils and pumped-up into storage tanks to be used later for domestic functions. Again, it's necessary to regulate the temperature as closely as safely possible to stop the water from changing into piping hot water particularly for domestic uses wherever blistering water could be unwittingly delivered to showers and sinks where individuals could be burned. The steam pumped-up into the generator is typically superheated and might turn out produce water with terribly high temperatures.

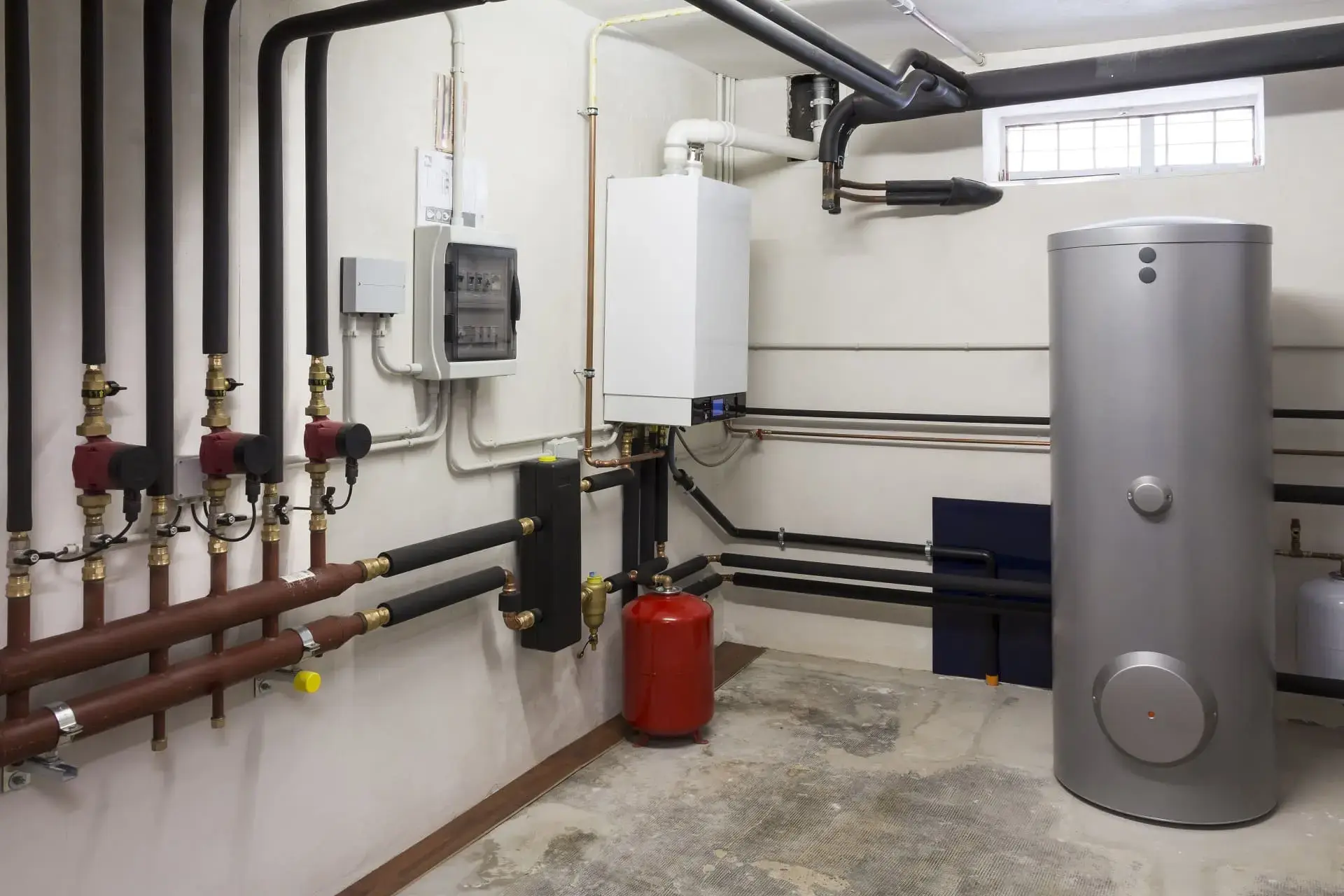

Indirect Heating to Produce Hot Water

One of the best and most common strategies for manufacturing hot water from steam is to use a device and heating the water supply to the specified temperature. This technique is termed "indirect" as a result of the steam/condensate don't are available in contact with the water supply. But, even inside this technique of heating, there are many various choices and selections to be thought about. Such questions that will need to be answered to select the appropriate method are

  • What quantity of water does one need?
  • What's the temperature rise of the water?
  • How responsive will the heater need to be?
  • Will a sanitary design be needed?
  • What space is available for the unit?

Once you answer these questions you will be closer to knowing which unit you will need to purchase.

There are a few common ways heat exchangers are used to heat water using steam. One technique is to use an easy shell and tube device. The water is heated by condensation the steam on one facet of the warmth money handler and also the flowing water on the opposite facet is heated to the specified temperature.

Such a device is commonly equipped with the steam management elements, condensation management elements, and an impact panel if required. A shell and tube package predicament generator is a superb selection for heating clean water and once your predicament demand is fairly consistent. The capability of such a system is de facto solely restricted by the house that you simply ought to match the skid and/or your water or steam accessible.

Gasketed Hot Water Generator

Another possibility for indirect heating to get hot water is to use a gasketed plate device for the service. The gasketed plate device employed in this service will facilitate minimize the footprint of the installation, maximize the responsiveness (due to it's smaller interference volume), and supply a degree of flexibility for future enlargement of such a system.

Years ago, gasketed plate heat exchangers were rarely thought-about for a heating service thanks to issues regarding the lifetime of the gaskets, however, today's elastomers are often rated for in excess of 350 °F and have evidenced the flexibility to work faithfully in heating services. There are manufacturers putting out devices specifically designed for heating services by optimizing the plate design to suit the massive temperature variations typically found in these applications.

U-tube bundles are typically employed in shell and tube heat exchangers for steam applications to assist in creating the thermal and pressure cycles related to using steam as a heating medium. The plate device might take these cycles even higher because the gaskets react almost like an accordion and permit the plates to easily expand and contract. For this reason, the plate device is mostly favored in hot water on-demand services once the unit can cycle on and off as frequently as required.

Direct Steam Injection for Hot Water

The last common technique of using steam to create hot water is the practical use of direct steam injection. Even as the name implies, direct steam injection employs some technique of introducing the steam directly into the water stream. This technique is commonly counseled once it's not convenient or desired to retain the condensation from the steam.

Direct steam injection uses all of this smart heat and puts it to together as hot water. In addition, this technique will conserve water furthermore as a result of the steam utility supply really participates in changing into a part of the recent water supply, eliminating any flash losses. additionally note that so as to use direct steam injection, the steam supply should be at a better pressure than the water supply.
