Pre-Action Systems

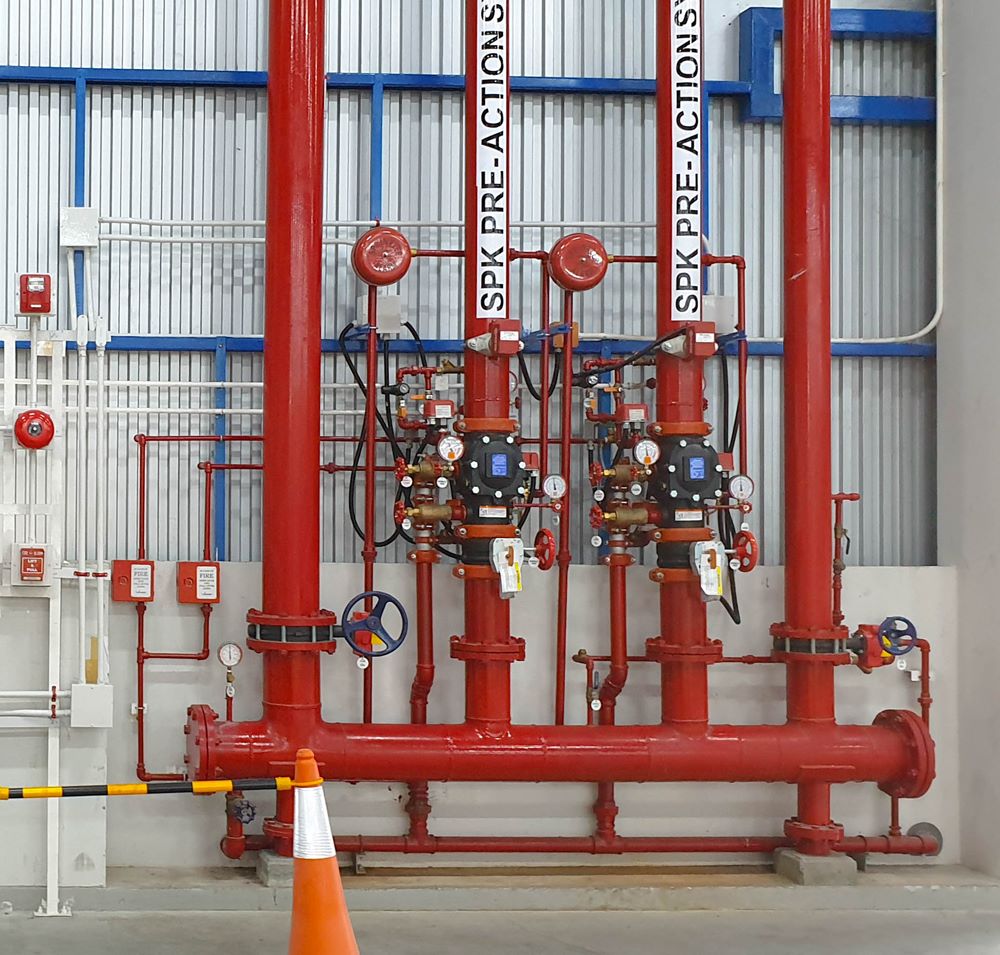

Pipework for pre-action system design

What is a Pre-Action System?

Pre-action systems for fire protection are one of four basic types of sprinkler systems. The other three are:

  1. Wet-pipe systems
  2. Dry-pipe systems
  3. Deluge systems

Essentially, pre-action systems combine the concepts of dry pipe and wet pipe fire sprinkler systems. Instead of a system that continuously has water in the pipework which is automatically discharged when there is a fire, an electrically or pneumatically operated pre-action valve in pre-action sprinkler systems restrains and controls the water.

Wet-pipe sprinkler systems are the most common type as well as being the simplest to design, install and maintain. They comprise a system of overhead pipes that contain water under pressure and closed sprinklers that are activated by heat. A reliable rule of thumb is that they should only be used when the sprinkler system remains over 40 °F/4 °C.

As their name suggests, dry-pipe sprinkler systems do not contain water. Instead, they are charged with air, and sometimes nitrogen, usually under pressure. A dry-pipe valve restrains the water supply interfacing the water and air. When a certain amount of heat is generated by fire, one or more sprinklers open, allowing air to escape, which, in turn, causes the air pressure to fall to a level that allows water to flow through the system to the open sprinklers. Dry-pipe systems are more complex to design and they present certain design restrictions, and also tend to lag in response. They should also only be used in an environment where the pipes will be exposed to temperatures below 40 °F/4 °C.

Like dry-pipe systems, pre-action systems utilize air-charged pipes, although the air pressure is not as high.

The discharge process in a pre-action fire sprinkler system has two stages:

  1. The detection system identifies heat and/or smoke caused by fire and activates a pre-action valve that releases water into the pipes creating a wet pipe sprinkler system.
  2. The automatic action of the sprinkler heads releases water onto the fire.

The delayed action protects the environment against false alarms and the inadvertent activation of sprinklers. It is particularly useful in water-sensitive environments where particularly valuable and/or irreplaceable items are stored. These include buildings where fine art, important archives, and rare books are stored, as well as computer and data centers, laboratories, and anywhere else that contains equipment or items that will be severely at risk from water damage.

Deluge sprinkler systems deliver large volumes of water over specified areas. They utilize open sprinklers that are effective in stopping fires from spreading rapidly. The system is activated by a supplemental fire detection system. Deluge systems are ideal for facilities where highly combustible materials are used or stored or where thermal damage is a risk.

Get Pricing On a New MEP Design Proposal in Fewer than 24 Hours

Request a proposal →

Types of Pre-Action Systems


Part of pre-action system design

Single Interlocked Pre-Action Systems

Single interlocked or interlock pre-action systems admit water to sprinkler piping upon operation of detection devices. They operate in a similar way to dry systems but require fire detection before the system is activated and water introduced into the piping via a pre-action valve. Typically this preceding fire detection is activated by a smoke or heat detector.

The valve, which is similar to a deluge valve, is mechanically latched and basically converts the system from being dry to wet. While it reduces the usually undesirable delay in delivery of water to the sprinklers that happens in dry systems, if the sprinkler operates prior to fire detection or the piping system starts to leak, the air pressure in the piping will decrease and activate an alarm that indicates there is some kind of trouble. If this happens, the pre-action valve won’t open and water won’t enter the piping.

If the piping is damaged or one or more sprinklers are broken the loss of air in the piping system won’t allow water to flow through the valve. It will, though, activate an alarm system that is linked to the system.

In accordance with NFPA 13 (see below), single interlock systems may not incorporate more than 1,000 automatic sprinklers that are controlled by any single preaction valve.

Preaction system design

Double Interlocked Pre-Action Systems

Double interlocked pre-action systems admit water to sprinkler piping upon operation of both the detection devices and the automatic sprinklers. It has similar characteristics of both the single interlocked system and dry-pipe system and typically incorporates a dry-pipe valve mounted on top of a pre-action valve.

The actual operation of these systems is similar to deluge systems, except that automatic sprinklers are used instead of the deluge of water that results from a deluge system.

A double interlocked system won’t operate unless both the fire detectors and the sprinklers are activated.

Generally, double interlocked pre-action systems are considered to be dry-pipe systems in terms of water delivery times and so they require a larger design area than single interlocked pre-action systems.

However, in accordance with NFPA 13 (see below), the sizes of these systems is controlled by a double interlock pre-action valve. Additionally, the size of the system should be:

  • Designed to deliver water to the system test connection within 60 seconds. This presumes that there will be normal air pressure on the system, with the inspection test connection fully open and the detection system activated simultaneously. A listed quick-opening device may be used to achieve these requirements.
  • Determined by calculating the water delivery in accordance with the water delivery required for a dry pipe system.
  • Designed to deliver water to the system trip test connection or manifold outlets in no more than the maximum time of water delivery specified in the Standard. This should start at the normal air pressure on the system, and the detection system should be activated and the inspection trip test connection or manifold opened simultaneously.

Double interlocked systems that utilize no more than 500 gallons/1,900 liters of water don’t have to meet specific water delivery requirements to the trip test connection.

Double-interlocked pre-action systems are commonly used in freezer facilities where the accidental operation of the valve could cause immediate freezing as well as damage of piping in the system.

Fire sprinkler and pipe for pre-action system design

Non-Interlocked Pre-Action Systems

Non-interlocked pre-action systems require the activation of the supplemental detection system or a sprinkler, not both. Activation of either of these initiates water-flow through the system.

Non-interlock systems operate with dry-pipe valves. The supplemental detection system is pneumatic or electric in design.

In accordance with NFPA 13 (see below), like single interlock systems, non-interlock systems may not incorporate more than 1,000 automatic sprinklers that are controlled by a single preaction valve.

Looking for an MEP / Fire Protection Engineering Poject?

Contact Us →

Standards for Pre-Action Systems


Alarm valve system for pre-action system design

Standards for Pre-Action Systems

Pre-action sprinkler systems requirements are contained in NFPA 13: Standard for the Installation of Sprinkler Systems, while the requirements for maintenance of pre-action sprinkler systems are contained in NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, including dry system testing.

While the NYC Building Code does cover sprinkler systems, the specification is that they should be designed and installed in accordance with the various NFPA standards, including those above and:

  • NFPA 13D: Standard for the Installation of Sprinkler Systems in One- and Two-Family Dwellings and Manufactured Homes
  • NFPA 13E: Recommended Practice for Fire Department Operations in Properties Protected by Sprinkler and Standpipe Systems
  • NFPA 13R: Standard for the Installation of Sprinkler Systems in Low-Rise Residential Occupancies

The Building Code also references NFPA 72: National Fire Alarm and Signaling Code, which contains the national standards for automatic sprinklers, standpipes, fire pumps, and fire alarm systems, as modified in Appendix Q of the Code to make the standards relevant to NYC.

Updated in 2019, NFPA 13, regarded as a benchmark standard, references more than 30 NFPA codes and standards, as well as numerous other publications produced by the American Concrete Institute (ACI), the American Society of Civil Engineers (ASCE), the American Society of Mechanical Engineers (ASME), ASTM International (formerly known as the American Society for Testing and Materials), the American Welding Society (AWS), the American Water Works Association (AWWA), ICC Evaluation Service (ICC-ES), the Institute of Electrical and Electronics Engineers (IEEE), Underwriters Laboratories Inc. (UL), and the U.S. Government.

While all sprinkler systems comprise integrated networks of piping and are activated by heat from fire that results in them discharging water over the fire area, the NFPA identifies 12 systems, all of which must be designed in accordance with fire protection engineering standards. These include a:

  • Water source supply
  • Water control valve
  • Water-flow alarm
  • Drain

The section of any sprinkler system above the ground comprises a network of hydraulically designed or specifically sized pipes that are installed in a building, area of a building, or in a structure of some sort. This piping is usually installed overhead with sprinklers attached to it to create a systematic pattern.

A preaction sprinkler system is defined as a system that uses automatic sprinklers that are attached to a piping system containing air that may or may not be under pressure. It incorporates a supplemental detection system that is installed in the same part of the building or structure as the sprinklers.

All components of hydraulic, pneumatic, or electrical systems should be compatible and the automatic water control valve should be provided with a hydraulic, pneumatic, or mechanical manual means for operation that is independent of detection devices and sprinklers.

Requirements for preaction systems include a specification that they should either be single interlock, double interlock, or non-interlock systems (see Types of Pre-Action Systems below).

If any of these systems incorporate more than 20 sprinklers, sprinkler piping and fire detection devices need to be automatically supervised.

The Standard also specifies which sprinkler types are permitted for preaction systems:

  • Upright sprinklers.
  • Listed dry sprinklers.
  • Pendent and sidewall sprinklers that are installed on return bends – as long as the sprinklers, return bend, and branch line piping is maintained at or higher than 40 °F/4 °C.
  • Horizontal sidewall sprinklers that don’t trap water.
  • Pendent and sidewall sprinklers where the elements are maintained at or above 40 °F/4 °C, where the water supply is potable and the piping used is CPVC or copper listed for dry-pipe applications.

From January 1, 2021, a clause relating to actuator supervision kicks in. When an electric actuator from the preaction valve it controls is removed the requirement is that there will be an audible and visual indication at the system releasing control panel showing that the system is “impaired”.

Control valves control the flow of water to fire protection systems and NFPA 25 regulates theinspection and testing of these and other valves.

If valve enclosures for preaction valves are subject to freezing temperatures, they need to be inspected daily when the weather is cold to verify a minimum temperature of 40 °F/4 °C. Those with low-temperature alarms only need to be inspected weekly. The Standard specifies how the inspection and additional testing should be done. It also covers good maintenance requirements.



New York Engineers pre-action system design

The Best System for Your Business

While not mandatory, pre-action systems are highly recommended for companies or organizations dealing with items and equipment that are water-sensitive as well as those in areas where wet-pipe sprinkler systems tend to freeze.

New York Engineers has extensive experience designing pre-action systems of all types. We will assess your needs to ensure that the system chosen is the best for your building and operations. Whether you need a non-interlock, single interlock, or double interlock system, you can be assured that our quotation will be competitively priced and affordable. Schedule a consultation today to see what our experienced team of specialist engineers can do for you.
