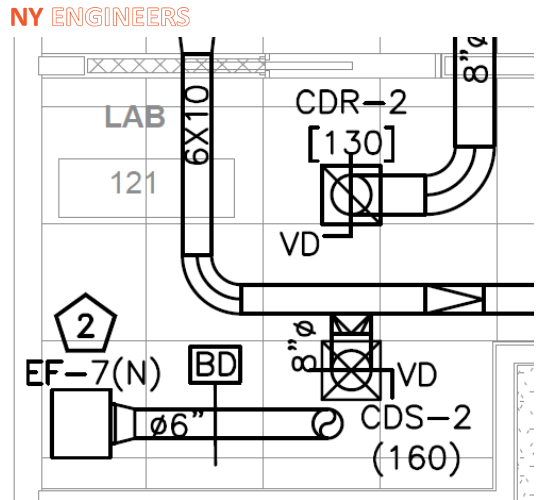

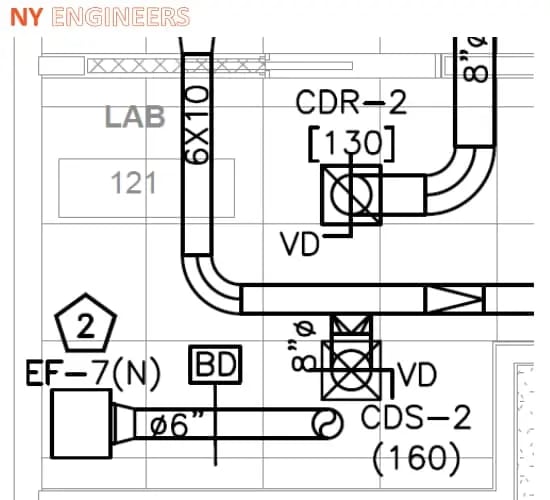

Laboratory Exhaust System


mechanical-engineering-service

Laboratory Exhaust System Design

Most commercial buildings follow a familiar pattern. There are bare rooms, possibly offices,  bathroom facilities, kitchen areas, break rooms, conference rooms, and the more spaces like these that are waiting to be finished once the final occupants move in. Other types of commercial buildings like hospitals care facilities, drug manufacturing, and pharmaceutical buildings need specialized infrastructure and mechanical systems to complete their intended functions. Whether these functions have to do with occupancy care, manufacturing, product creation, or testing and analysis of end products, the proper mechanical, electrical, and plumbing equipment must be selected to ensure the safety of the occupants.

With specialty commercial buildings where very specific tasks need to be completed, the mechanical, electrical, and plumbing systems need to match the level of complexity of the building. Where there are things like clean rooms and laboratories in a building, it takes a specialized set of systems to adequately process and manage the building functions. A laboratory has very specialized functions that produce unique and potentially hazardous waste, toxic chemicals, and manufactured pollutants that can create a combustible atmosphere if left unchecked in the laboratory. For this reason it is necessary to design and install the specialized equipment and systems to manage the expulsion and neutralization of these byproducts.

One such system required is the exhaust system. In standard applications you will find exhaust systems in kitchens, bathrooms, and anywhere else potentially hazardous materials can build up in the atmosphere of a structure. Both commercial and residential structures have exhaust systems in various rooms to help expel the byproducts produced by occupant activities through a series of fans, mechanical equipment, filters, blowers, ductwork, and other components that could make up an exhaust system.

Each laboratory will have it's own unique set of system requirements based on what the laboratory is producing and testing in the space. Consulting with an MEP engineer that has specialized knowledge in lab applications is highly recommended. The earlier you can consult with a professional the better. Consulting with a professional early on in the design process will lower your chance of mistakenly selecting the wrong equipment, drastically.



mechanical-engineering-service

What is a laboratory exhaust system?

A laboratory exhaust and ventilation system are designed to provide a safe, healthy and clean environment for those professionals using hazardous materials in their experimentation and work. These workers include scientists, laboratory workers, and other professionals that conducting experiments in a professional lab setting. Like traditional exhaust systems the work of the laboratory exhaust system to so clear the lab air of toxins and residual chemical fumes while ensuring they are disposed of in a safe manner while also returning clean air to this lab environment.

Like any exhaust system, the laboratory exhaust system can be designed and structured to meet the needs and specifications of both large and small layouts. Working with a qualified MEP Engineer will ensure that your laboratory exhaust system meets success by including consideration in both the design and build of a laboratory setting. The safety of both the building inhabitants in both the lab and adjacent buildings is paramount therefore ensuring that your design is ideal for your lab's needs is beyond imperative and will impact the overall operating costs of the building.

By choosing the proper system for your space, you will be able to positively impact operation costs by increasing efficiency and taking the labor off other HVAC equipment to maintain the proper air temperature and air quality in the building. In laboratories it is especially important to maintain air quality and a clean environment. Without the proper mechanical equipment, a laboratory could become unstable or unsafe leading to disastrous consequences.

Get Pricing On a New MEP Design Proposal in Fewer than 24 Hours

Request a proposal →

laboratory exhaust systems


mechanical-engineering-service

What are some common applications?

While some laboratory exhaust systems are designed to meet specific design specifications of a unique build most laboratory exhaust systems can be categorized into three main groups. These categories represent the broadest of ranges of exhaust systems. Your specific laboratory design may require a custom or otherwise unique configuration to meet the project objectives.

Laboratory exhaust systems fall into three main classes:

  • chemical fume hoods for working with corrosive acids and bases, volatile solvents, and other hazardous chemicals;
  • biological safety hoods, which can be designed to protect the work (clean air bench) or the worker (true biosafety cabinet);
  • and standard exhaust hoods typically used in mechanical or machine shops or production areas.



Let’s take some time to examine each one of these exhaust applications and discuss the proper considerations for each. Understanding each type will help you discuss more intelligently your options with your MEP engineer. A specialized MEP engineer is one of the professionals you should be consulting in the design phase of your project. Getting their input early on in the project will help you avoid costly errors and project deadline delays.

The Chemical Fume Hood is specifically designed to remove hazardous chemicals. Depending on the laboratory environment there can be vapors, unsavory dust, or unstable aggressive solvents or corrosive acids and bases that will need to be dealt with and removed. This piece of ventilation equipment is designed to pull and draw air away from the laboratory worker. The air is pulled across the work surface and through ductwork where it is diluted and released into the atmosphere.

Biological safety hoods/containers are specifically engineered to provide environmental, workers and product protection. Depending on the scientific research being performed there are a variety of biological safety hoods or biosafety cabinets. The biological safety hoods are broken down into classes which determine the specific time of exhaust and protection needed.

“Class I exhausts have an open front, operate under negative pressure and do not provide product protection.”

“Class II is broken down into two main categories—Type A or Type B.

  • Class II, Type A cabinets recirculate air back into the laboratory but not if they are canopy connected to the outside as required by the application (specifically working with odorous materials).
  • Class II, Type A1 and A2 cabinets are similar yet separated by the minimum average inflow velocity (fpm) required, and neither type can handle work involving radionuclides or volatile chemicals.
  • Class II, Type B cabinets, on the other hand, are hard ducted to laboratory exteriors and are suitable for work with only trace amounts of these more harmful substances if required by the microbiological studies being performed in the interior of the equipment.
  • Class II, Type B1 biosafety cabinets recirculate a percentage of air back into the laboratory while Class II, Type B2 cabinets are entirely hard ducted. Class III biosafety cabinets are completely enclosed and feature attached rubber gloves.”

Standard exhaust hoods are traditionally employed in machine shops or mechanical production areas. These are the most basic of the exhaust systems and are designed to remove heat and dust from the environment and keep employees safe while maintaining homeostasis of the production environment. Recognize that you may need much more specialized equipment to complete your mechanical, electrical, plumbing design for your specific laboratory.

mechanical-engineering-service

Why do you need a laboratory exhaust system?

A laboratory exhaust system can exist for many reasons.  in order for the laboratory to be in compliance with industry standards and building codes, an exhaust system must be in place before occupancy and use. The laboratory exhaust system essentially keeps the lab safe, the lab workers safe, and maintains a clean environment for experiments.

Since the chemical fume hood is the most utilized application of laboratory exhaust systems we will focus on them. Here are the main considerations for why you need chemical fume hood into your laboratory design plans:

  1. Planned experiments can go awry
  2. Keep harmful chemicals and volatile and hazardous solvents out of the air
  3. Assure that laboratory staff are safe during experiments
  4. Replace the contaminated air with clean air
  5. Ensure that the chemicals and hazardous air moved out is broken down and properly released back into the atmosphere

Additionally, without the proper laboratory exhaust system in place, the construction project will not have a passing inspection from the building inspector. This means an occupancy permit will not be issued until the building code violations have been addressed and fixed. The importance of a laboratory exhaust system cannot be stressed enough. Your MEP engineer will be able to help you understand better why a laboratory exhaust system is required for laboratories.

mechanical-engineering-service

What can cause laboratory exhaust systems to fail and how to avoid them?

There are many reasons a fume hood might malfunction or fail overall. Here are the most reported reasons for mechanical failure :

  1. Ceiling Enclosures and/or Negative Ceiling Pressure
  2. Improperly designed ductwork systems
  3. Inappropriate placement of fume hood

Other reasons for mechanical failures could be user error, lack of maintenance, accidental damage due to an accident in the lab, plus a multitude of other possibilities. The trick is to know your system inside and out so that when a failure does occur, you can assist in the diagnostic activities of the contractor sent to fix the system.

As you can imagine, not just any contractor can work on these types of systems. In order to be able to properly diagnose and repair the system, it must be a specialized mechanical contractor who does the work. Be sure to check the references and qualifications of the companies who will be installing, repairing, or maintaining the system.

Laboratory exhaust system maintenance is paramount to the overall life of the system. Maintaining cleanliness and system health is the only way to ensure the system is adequately able to complete it's function to maintain the atmosphere in the lab. The safety of the occupants is dependent on the exhaust system being able to do clean the air and expel the contaminated air before it has time to build up to unsafe levels.

Looking for an MEP / Fire Protection Engineering Poject?

Contact Us →

laboratory exhaust systems


mechanical-engineering-service

How can an MEP engineer help

A qualified MEP engineer can help you select the proper equipment based on a number of factors. The engineer is required to have a certain level of construction and mechanical, electrical, Plumbing knowledge. they are also required to know and understand the load calculations necessary to size MEP equipment. Their experience and knowledge gives them the basis to effectively and efficiently choose your MEP equipment.

A local qualified MEP engineer will have knowledge and understanding of the local building codes and local governing bodies for the commercial construction industry. They are your expert boots on the ground in the mechanical, electrical, plumbing areas of your project. The MEP engineer is a vital component of your construction team and someone who you should use as a reliable resource. If your general contractor does not have an MEP engineer in-house, do your due diligence and find one that you work well with.



mechanical-engineering-service

The MEP engineer will be able to review the plans you have drafted with your architect and with all of the information you have gathered on the equipment you think you need, they will be able to determine your next steps and the direction you need to go. They may need to conduct additional or complementary research and inquiries to verify they are making the correct recommendation for the size of equipment for your application.

mechanical-engineering-service

Calling on the experts like an MEP engineer will help your project succeed in the long run and help you to continue being profitable and efficient. Knowing when to call in an expert is a valuable skill to have. If you think you need an MEP engineer please take a moment to contact us and we would be happy to review your project information. We are pleased to serve the Chicago area and welcome local and out of state clients.
